European warehouse

Highly recommend to choose european warehouse when you order，it is faster shipping.
European warehouse can deliver to Germany, Belgium, Luxembourg, Slovakia Czech, Hungary, Austria, Netherlands, Denmark, France, Ireland, Italy, Slovenia, Spain, Finland, Latvia, Lithuania, Sweden, Bulgaria, Estonia, Greece, Portugal, Romania, Croatia, Malta

Noted Before Buy

This camera did not come with DVR, power supply &video power cable!
1, this is a hard-wired camera, it need to connect the cctv cable and power supply( NOT included).
2, this camera could not work seperately,it need to connect to the DVR to work.

Troubleshooting

Q: Video Loss appears where the image from my camera should be displaying on my DVR?
A: 1.Check the extension cable (power and video) is securely connected to the camera.
2.Check the video output from the camera is securely connected to a video input channel on the DVR.
3.Check the power from the camera is securely connected to a power supply.
4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode.

Q: Poor image quality?
A:Default video mode is analog 960H mode.If your DVR supports 4 in 1(or 5 in 1),it is recommended to set the camera to TVI,AHD or CVI mode which the image achieve the best effect.

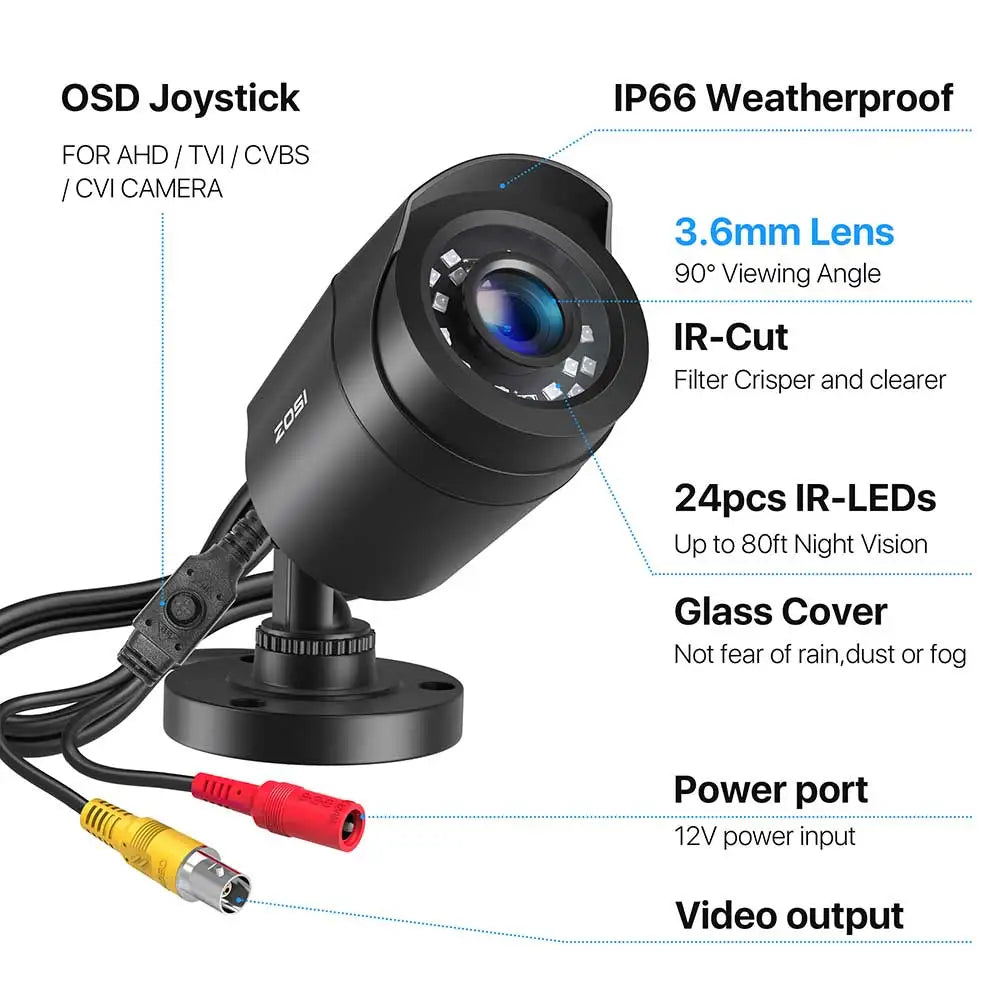

4-IN-1 Security Camera Specification

Image Sensor: 1/3〞CMOS CMOS with IR-Cut.
Active Pixels: 1920(H)×1080(V).
Resolution: 1080P .
Lens: 3.6mm
LEDs Amount: 24pcs, 5mm LEDs
Singal mode: TVI/AHD/CVI/CVBS 960H.
IR Distance: up to 80ft
Weather - Resistant

CVBS/CVI/AHD/TVI 4-In-1 Camera

This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs：HD-TVI, AHD, CVI, and CVBS(960H)， and adjust the video settings.

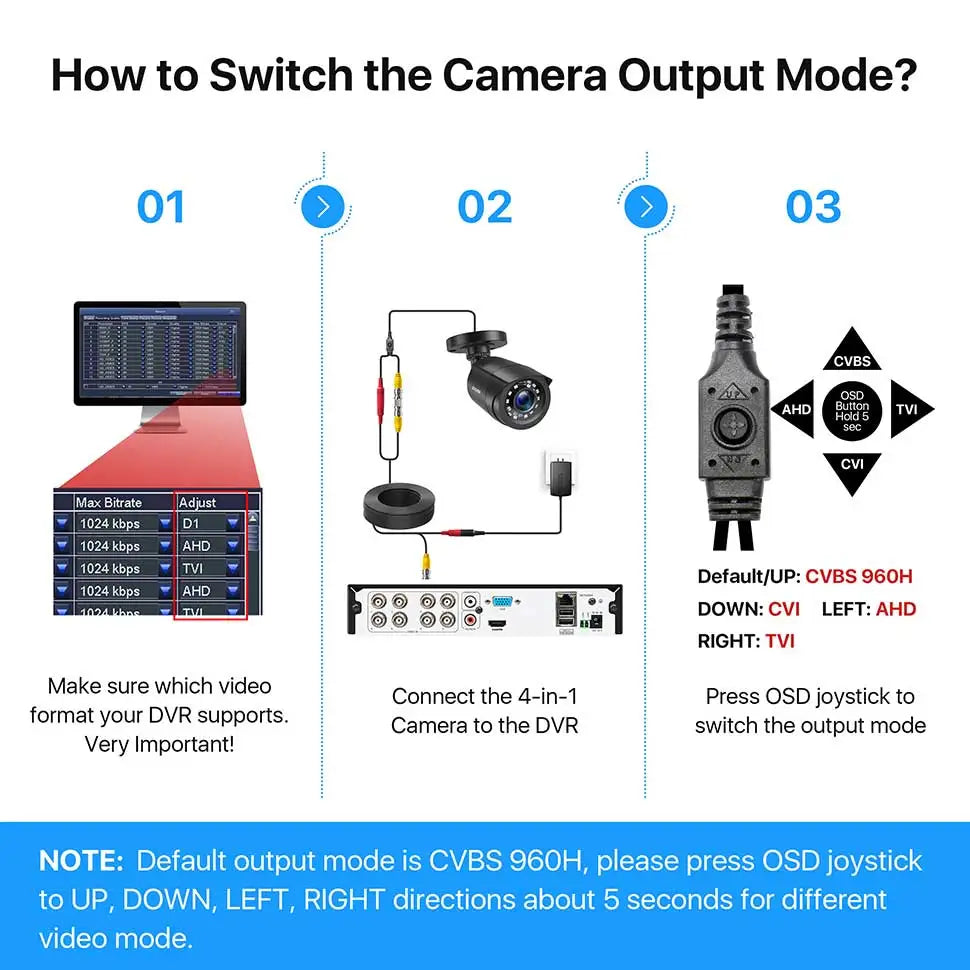

Operation Mode：
Switch from AHD: Press Leftward for 5 Seconds

Switch from TVI: Press Rightward for 5 Seconds

Switch from CVBS: Press Upward for 5 Seconds

Switch from CVI: Press Downward for 5 Seconds

Noted: Default Video Mode is Analog 960H Mode

Package Include:

1 x Outdoor/Indoor 1080P IR Color CMOS Camera
1 x Mounting Screw bag
1x Instruction Manual
